Servo - Generic, 180° Rotation (Sub-Micro Size)
ROB-24052

Servo - Generic, 180° Rotation (Sub-Micro Size)

SKU: ROB-24052
$10.95
In stock
SKU
ROB-24052
In stock
Stock/Discounts

This little guy is able to take in 6 volts and deliver 1.5kg/cm (at 6V). of maximum torque at 0.09 sec/60° (at 6V) with a 180° rotation.

Helpful Documentation

Product Overview

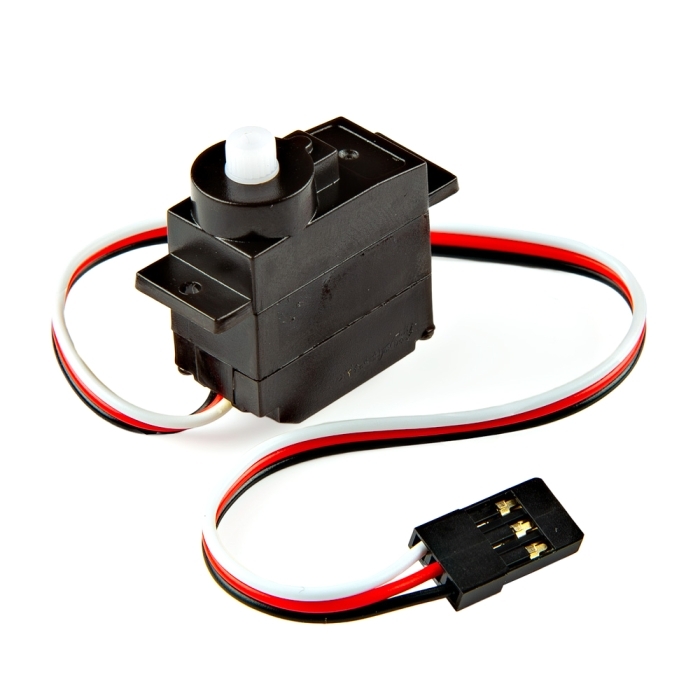

Here is a simple, low-cost servo for all your mechatronic needs. This little guy is able to take in 6 volts and deliver 1.5kg/cm (at 6V). of maximum torque at 0.09 sec/60° (at 6V).

This small servo comes with a standard 3 pin power and control cable, six arms and six screws.

Note: This is the same servo used with the XRP kits Beta & DIY

Includes:

  • 1x Micro Size Servo
  • 2x Single Arm Micro Horn
  • 2x Double Arm Micro Horn
  • 2x Four Point Micro Horn
  • 4x 2x8mm Phillips Screw
  • 2x 2x6mm Phillips Screw

Hookup Accessories

Features & Specs

  • Voltage: 4.8-6.0 Volts
  • Torque: 1.2kg/cm (at 4.8V), 1.5kg/cm (at 6V)
  • Speed: 0.11sec/60° (at 4.8V), 0.09sec/60° (at 6V)
  • Current: < 500mA
  • Rotation: 180°
  • Operating Temperature: 0 ℃ - 60 ℃
  • Standard Signal: 1000~2000 microseconds
  • Deadband Setting: 4 usec
  • Motor Type: Iron Core
  • Gear Type: Plastic
  • Dimensions: 23.1 x 11.9 x 26.0 mm
  • Wire Length: 180mm
  • Weight: 9g

Documentation

Customer Reviews

Servo - Generic, 180° Rotation (Sub-Micro Size)
Servo - Generic, 180° Rotation (Sub-Micro Size)
$10.95
ROB-24052

Stock and Customer Discounts

$10.95 retail price.

Available Discounts

  • $10.40 | 25+ units
  • $9.86 | 100+ units

Looking for even larger quantities?

Get in touch for Volume Pricing
