SparkFun CBI Light Pipe for SMD LEDs 5mm - Right Angle

Product Overview

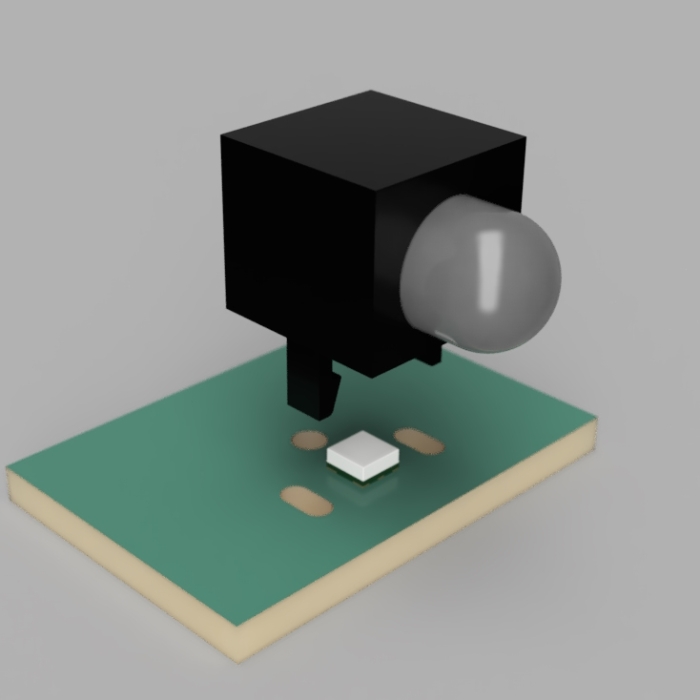

This is a 5mm right angle light pipe to get the light of an LED out the end plate of an enclosure. We couldn't find a light pipe that fit all our needs, so we made it! This clip snaps over any SMD LED that is 1206 size or smaller. Addressable LEDs 2x2mm or smaller work great! The clip is easily inserted but holds tightly in place. The clip can be removed if needed. The black housing prevents light bleed between neighboring indicators. An example footprint and layout in KiCad is available on the documents tab.

Circuit board indicators should be any color and take only one GPIO to control them all!

This product is sold as a single unit. Please see our 100pcs bags for volume pricing.
