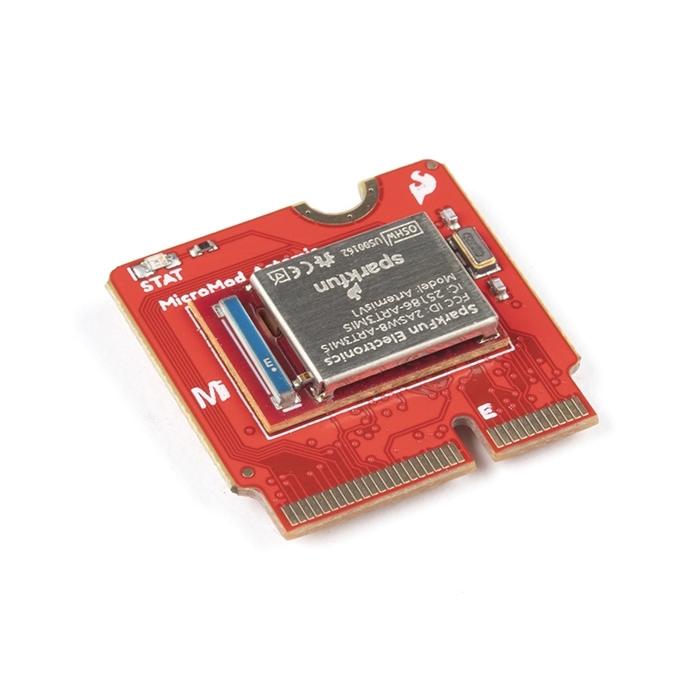

SparkFun MicroMod Artemis Processor
Featuring the Artemis Module, this processor is capable of machine learning, Bluetooth, I2C, GPIO, PWM, SPI & packaged to fit the M.2 standard of MicroMod.
Helpful Documentation
Hookup Guide
Schematic
DatasheetProduct Overview
Leveraging the ultra powerful Artemis Module, the SparkFun MicroMod Artemis Processor is the brain board of your dreams. With a Cortex-M4F with BLE 5.0 running up to 96MHz and with as low power as 6uA per MHz (less than 5mW), the M.2 MicroMod connector allows you to plug in a MicroMod Carrier Board with any number of peripherals. Let's have a look at what this processor board has to offer! If you need Machine Learning capabilities, Bluetooth, I2C functionality to connect to all our amazing Qwiic boards, and more the Artemis Processor is the perfect choice for your MicroMod Carrier Board.
At the heart of SparkFun's Artemis Module is Ambiq Micro's Apollo3 processor, whose ultra-efficient ARM Cortex-M4F processor is spec’d to run TensorFlow Lite using only 6uA/MHz. We've routed two I2C buses, eight GPIO, dedicated digital, analog, and PWM pins, multiple SPI as well as QuadSPI, and Bluetooth to boot. You really can't go wrong with this processor. Grab one today, pick up a compatible carrier board, and get hacking!
-
-
-
-
-
-
-
OpenMV Cam PureThermal
Special Price Current price: $259.00 Regular Price Original price: $369.95In stock -
-
-
-
-
-
-
-
-
Luxonis Oak-D LITE
Special Price Current price: $123.32 Regular Price Original price: $149.95Backorder -
-
-
SparkFun Artemis Development Kit
Special Price Current price: $21.83 Regular Price Original price: $48.50In stock
-
-
-
-
-
-
Luxonis Oak-1 DepthAI Hardware
Special Price Current price: $123.32 Regular Price Original price: $149.95In stock -
-
-
-
SparkFun MicroMod GNSS Function Board - ZED-F9P
Special Price Current price: $184.22 Regular Price Original price: $274.95In stock -
SparkFun MicroMod GNSS Function Board - NEO-M9N
Special Price Current price: $34.97 Regular Price Original price: $49.95In stock -
-
Luxonis Oak-D DepthAI Hardware
Special Price Current price: $175.95 Regular Price Original price: $213.95Backorder -
SparkFun MicroMod Cellular Function Board - Blues Wireless Notecarrier
Special Price Current price: $64.95 Regular Price Original price: $119.95In stock -
-
-
-
-
Features & Specs
Artemis General Features:
- 1M Flash / 384k RAM
- 48MHz / 96MHz turbo available
- 6uA/MHz (operates less than 5mW at full operation)
- 48 GPIO - all interrupt capable
- 31 PWM channels
- Built in BLE radio and antenna
- 10 ADC channels with 14-bit precision with up to 2.67 million samples per second effective continuous, multi-slot sampling rate
- 2 channel differential ADC
- 2 UARTs
- 6 I2C buses
- 6 SPI buses
- 2/4/8-bit SPI bus
- PDM interface
- I2S Interface
- Secure 'Smart Card' interface
- FCC/IC/CE Certified (ID Number 2ASW8-ART3MIS)
Specific Peripherals made available on MicroMod Artemis:
- 1x USB dedicated for programming and debug
- 1x UART with flow control
- 2x I2C
- 1x SPI
- 1x Quad-SPI
- 8x Fast GPIO
- 2x Digital Pins
- 2x Analog Pins
- 2x PWM
- 1x Differential ADC pair
- Status LED
- VIN Level ADC
Additional peripherals are available but are shared on dedicated MicroMod pins.
Documentation
MicroMod Artemis Processor Documentation:
MicroMod Documentation:
- SparkFun MicroMod Interface v1.0 - Pinout
- SparkFun MicroMod Interface v1.0 - Pin Descriptions
- Getting Started with MicroMod
- Designing with MicroMod
- MicroMod Info Page
- MicroMod Forums
- SparkFun Eagle Libraries contains example footprints for the M.2 connector and SMD standoff
- M.2 MicroMod Connector Datasheet
- MicroMod Reflowable Standoff Datasheet
Artemis Documentation:
